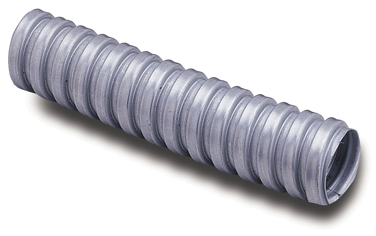

| Flexible Metal Conduit(Type K) |
 |
|
Type
|
Trade Size
(in)
|
I.D.
(mm)
|
O.D.
(mm)
|
Coil Length
(mm)
|
KC-03 |
3/8" |
12.3 |
15.5 |
50 |
KC-04 |
1/2" |
15.7 |
19.5 |
50 |
KC-06 |
3/4" |
20.5 |
24.5 |
50 |
KC-10 |
1" |
26.3 |
30.7 |
50 |
KC-12 |
1-1/4" |
34.5 |
39.7 |
30 |
KC-14 |
1-1/2" |
39.8 |
46 |
25 |
KC-20 |
2" |
51.4 |
58.4 |
20 |
KC-24 |
2-1/2" |
63 |
70 |
10 |
KC-30 |
3" |
77 |
85 |
10 |
KC-40 |
4" |
100 |
109 |
10 |
|

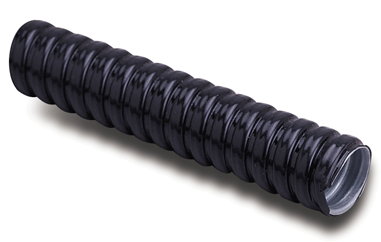

PVC Coated Flexible Metal Conduit(Type K) |
 |
|
Type
|
Trade Size
(in)
|
I.D.
(mm)
|
O.D.
(mm)
|
Coil Length
(mm)
|
KA-03 |
3/8" |
12.3 |
16.5 |
50 |
KA-04 |
1/2" |
15.7 |
20.5 |
50 |
KA-06 |
3/4" |
20.5 |
25.9 |
50 |
KA-10 |
1" |
26.3 |
32.3 |
50 |
KA-12 |
1-1/4" |
34.5 |
41.2 |
30 |
KA-14 |
1-1/2" |
39.8 |
47.7 |
25 |
KA-20 |
2" |
51.4 |
60.7 |
20 |
KA-24 |
2-1/2" |
63 |
73.5 |
10 |
KA-30 |
3" |
77 |
88 |
10 |
KA-40 |
4" |
100 |
110 |
10 |
|
Flexible Metal Conduit(Type H) |
 |
|
Type
|
Trade Size
(in)
|
I.D.
(mm)
|
O.D.
(mm)
|
Coil Length
(mm)
|
HC-03 |
3/8" |
12.3 |
16.5 |
30 |
HC-04 |
1/2" |
15.8 |
19.8 |
30 |
HC-06 |
3/4" |
20.7 |
25.2 |
30 |
HC-10 |
1" |
26.0 |
31.7 |
30 |
HC-12 |
1-1/4" |
34.7 |
40.4 |
20 |
HC-14 |
1-1/2" |
40.0 |
46.4 |
20 |
HC-20 |
2" |
51.3 |
57.4 |
15 |
HC-24 |
2-1/2" |
63 |
70.1 |
10 |
HC-30 |
3" |
78 |
85.9 |
10 |
HC-40 |
4" |
102 |
110.2 |
5 |
|

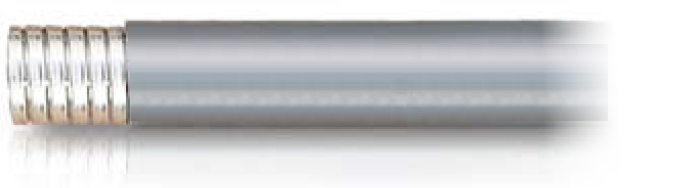

PVC Coated Flexible
Metal Conduit(Type H) |
 |
|
Type
|
Trade Size
(in)
|
I.D.
(mm)
|
O.D.
(mm)
|
Coil Length
(mm)
|
HA-03 |
3/8" |
12.3 |
17.5 |
30 |
HA-04 |
1/2" |
15.8 |
20.8 |
30 |
HA-06 |
3/4" |
20.7 |
26.2 |
30 |
HA-10 |
1" |
26.0 |
32.7 |
30 |
HA-12 |
1-1/4" |
34.7 |
41.4 |
20 |
HA-14 |
1-1/2" |
40.0 |
47.4 |
20 |
HA-20 |
2" |
51.3 |
59.4 |
15 |
HA-24 |
2-1/2" |
63 |
72.1 |
10 |
HA-30 |
3" |
78 |
87.9 |
10 |
HA-40 |
4" |
102 |
113.2 |
5 |
|
| |
|
